Description
KEY FEATURES
- Certified to EN 1063 and NATO STANAG standards.
- Available EN ballistic ratings: BR1 to BR7.
- Available NATO STANAG ratings: Level 2 and Level 3.
- Tested against handgun threats including .22 Long Rifle, 9 mm Luger, .357 Magnum and .44 Magnum.
- Tested against rifle threats including 5.56 x 45, 7.62 x 51 and 7.62 x 54R, subject to the relevant standard.
- Designed for multi-hit resistance, anti-spall performance and optical clarity.
- Optional de-icing, defogging and heated-glass configurations available for all-weather operation.
- Indicative size capability from 100 x 100 mm minimum up to 2000 x 4000 mm maximum, subject to selected thickness and rating.
APPLICATIONS

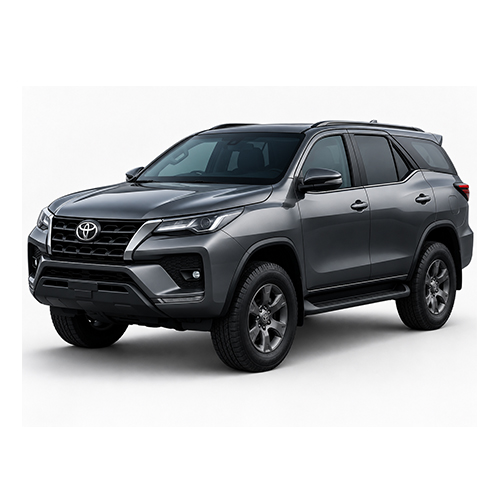

- Armoured SUVs and VIP-protection vehicles, including glass solutions engineered for convoy and executive-mobility requirements.
- Military buses and protected transport platforms requiring a balance of visibility, utility and ballistic protection.

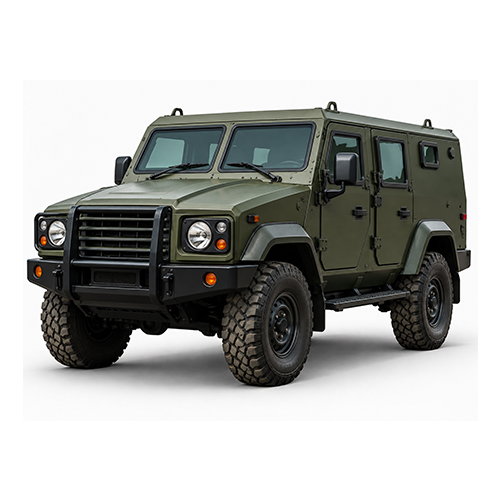

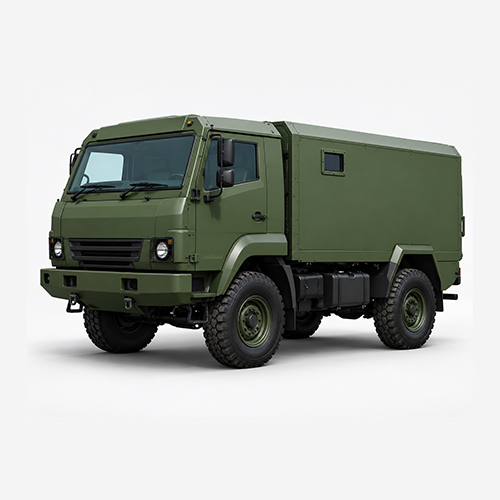

- Military and security vehicles deployed for convoy transport, patrol and field operations.
- Protected structures and specialised defence applications where transparent armour is required without compromising visibility.
PRODUCT OVERVIEW
VIC MAC Bullet Resistant Glass is a ballistic-grade transparent protection solution designed for armoured mobility and protected installations where security, visibility and reliability are critical. The available range is certified to EN 1063 and NATO STANAG standards, with EN ratings from BR1 to BR7 and STANAG Levels 2 and 3. The product range is intended to deliver multi-hit resistance, anti-spall performance and optical clarity, and can also be supplied in de-icing, defogging and heated configurations for demanding all-weather deployment. Final thickness, size and certification depend on the selected threat level, splinter or non-splinter requirement and approved customer specification.
The above values are indicative website-reference data based on the available glass-range sheet. Final thickness, construction and certification must be confirmed against the selected rating and approved technical offer.
KEY FEATURES & TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| Product Type | Ballistic-grade bullet resistant glass |
| Protection Standards | EN 1063 and NATO STANAG |
| Available Ratings | EN 1063: BR1 to BR7 | NATO STANAG: Level 2 and Level 3 |
| Common Threat Coverage | Handguns (.22, 9 mm, .357, .44) and rifles (5.56 x 45, 7.62 x 51, 7.62 x 54R), as applicable to the selected rating |
| Performance Features | Multi-hit resistance, anti-spall performance and optical clarity |
| Special Options | De-icing, defogging and heated-glass configurations available |
| Size Capability | 100 x 100 mm minimum up to 2000 x 4000 mm maximum, subject to selected thickness and rating |
| Indicative Thickness Examples | EN 1063 range: approx. 20 mm to 75 mm | STANAG range: approx. 50 mm to 62 mm |
| EN 1063 Non-splinter Ratings | BR1: 22 mm | BR2: 24 mm | BR3: 40 mm | BR4: 43 mm | BR5: 55 mm | BR6: 50 mm | BR7: 75 mm |
| EN 1063 Splinter Ratings | BR1: 20 mm | BR2: 21 mm | BR3: 25 mm | BR4: 33 mm | BR5: 35 mm | BR6: 42 mm | BR7: 65 mm |
| STANAG Thickness | Level 2: 50 mm splinter / 60 mm non-splinter | Level 3: 55 mm splinter / 62 mm non-splinter |
| Typical Strike Requirement | Commonly 3 strikes for EN ratings and STANAG Level 2; 1 strike shown for STANAG Level 3 in the referenced range table |
| Supply Basis | Final configuration to be confirmed against rating, threat standard, panel size, certification and approved customer requirement |
