Description
PRODUCT OVERVIEW
The VIC MAC Bullet-Proof Modi Jacket is designed for discreet personal protection while retaining the appearance and comfort of a conventional Nehru / Modi-style jacket. Removable ballistic inserts allow the garment to be configured according to the required protection level. The jacket is intended for VIP, government and close-protection applications where low visual profile, seated comfort and freedom of movement are important.
KEY FEATURES
- Looks like a conventional Nehru / Modi-style jacket.
- Removable ballistic inserts.
- Thin, low-profile construction intended to minimise visible bulk.
- Cloth and colour options available.
- Designed to permit comfortable sitting and normal movement.
- Approximate common weight: 2.5 kg including outer jacket.
- Ballistic insert warranty commonly documented as 5 years; outer jacket warranty 2 years.
- Complete ballistic jacket supplied with integrated armour panels.
- Armour panels only, supplied separately for integration into the customer’s existing compatible jacket/carrier.
TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| Common / Indicative Specification | NIJ Level IIIA |
| Applicable Standard | NIJ 0101.06 / applicable approved revision, as confirmed for supplied configuration |
| Approx. Weight | 2.5 kg with outer jacket – common documented value |
| Ballistic Inserts | Removable |
| Outer Style | Nehru / Modi-style jacket |
| Cloth / Colour | Multiple options; made to requirement |
| Mobility | Low-profile design intended for seated and standing movement |
| Warranty – Ballistic Inserts | 5 years – common documented value |
| Warranty – Outer Jacket | 2 years – common documented value |
These are common configurations currently documented. Other configurations can be manufactured to approved customer specification.
APPLICATIONS
- VIP and executive protection
- Government officials and dignitaries
- Close-protection details
- Low-profile security assignments
GALLERY GUIDANCE
- Front worn view
- Rear worn view
- Side profile
- Ballistic insert removed
- Fabric / colour options
RELATED PRODUCTS
Bullet-Proof Umbrella | Ballistic Briefcase
FINAL CTA
VIC MAC products are manufactured to the buyer’s approved requirement. The values shown are common configurations in existing VIC MAC technical sheets.
KEY FEATURES
- Ultra-high-hardness ballistic protection steel for protection applications.
- Hardness range: 590-640 HB, measured 1 mm below the plate surface.
- Typical mechanical properties include approximately 1550 MPa yield strength and 2100 MPa tensile strength.
- Supplied in quenched and tempered condition.
- Common thickness range from 3.0 mm to 12.0 mm.
- Suitable for controlled welding, cold bending, sawing, mechanical cutting and milling.
- Material temperature during fabrication should not exceed 150°C in order to preserve characteristic hardness and performance.
- Suitable as base armour or add-on armour for vehicles, security doors, protective walls, counters and other specialised protection systems.
APPLICATIONS
- Vehicle armour: armoured SUVs, cars, trucks, cash-in-transit vehicles and police / security vehicles.
- Structural protection: security doors, protective walls, counters, ballistic partitions and related security applications.
- Reference recommendations include 5.56 x 45 mm and 7.62 x 51 mm threats at approximately 4.7 mm plate thickness under the stated reference test conditions.
- Higher reference threats include 7.62 x 39 mm API at approximately 8.5 mm, 7.62 x 51 mm hard-core at approximately 10 mm and 7.62 x 54R B32 at approximately 12 mm, subject to the applicable test distance, velocity and certification.
PRODUCT OVERVIEW

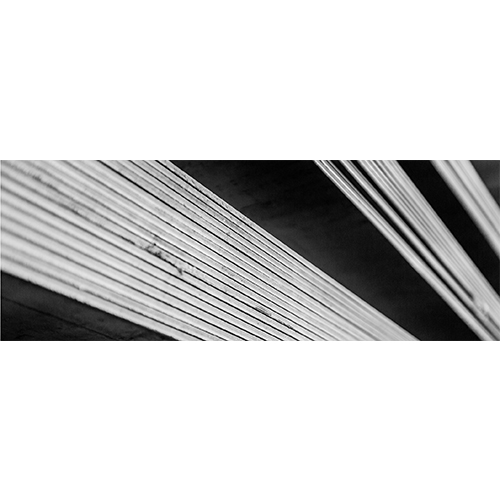

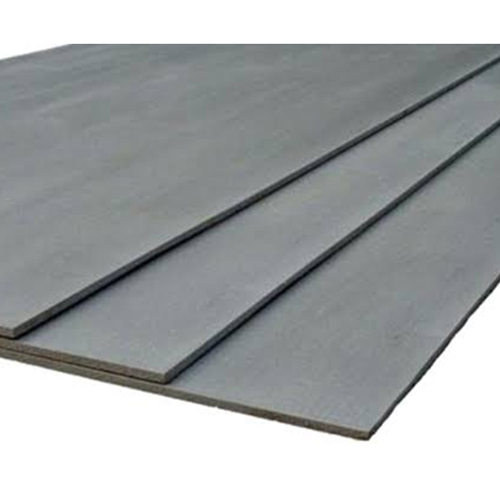

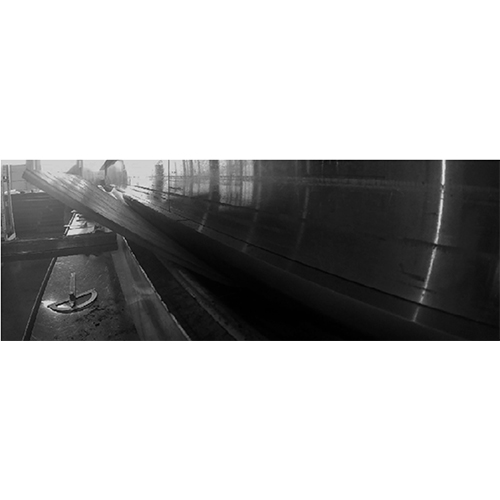

VIC MAC Bullet Proof Armour Steel is an ultra-high-hardness ballistic protection steel intended for demanding protection applications. It can be used as primary armour material or as add-on protection in armoured vehicles, security structures and other ballistic-protection systems. The common reference specification combines very high hardness and strength with practical workshop characteristics for controlled welding, cold bending, sawing, mechanical cutting and milling. Final plate thickness and ballistic performance are selected against the required threat, test condition and approved customer specification.
These are common reference properties for the material grade. Final dimensions, thickness, ballistic performance and certification must be confirmed against the supplied plate batch, applicable test certificate and approved customer specification.
TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| Material Type | Ultra-high-hardness ballistic protection steel |
| Delivery Condition | Quenched + tempered |
| Hardness | 590-640 HB |
| Hardness Measurement | DIN EN ISO 6506-1 | measured 1 mm below plate surface |
| Typical Yield Strength | Approx. 1550 N/mm² |
| Typical Tensile Strength | Approx. 2100 N/mm² |
| Typical Elongation A5 | Approx. 8.5% |
| Typical Impact Strength | Approx. 13 J at -40°C |
| Thickness Range | 3.0-6.5 mm and 7.0-12.0 mm |
| Width Range | Approx. 1000-1550 mm |
| Length Range | Approx. 1500-8000 mm for 3.0-6.5 mm | 1500-6100 mm for 7.0-12.0 mm |
| Common Stock Dimension | Approx. 1500 x 3000 mm |
| Width Tolerance | 0 / +20 mm |
| Flatness | Maximum stated deviation: 6.0 mm/m |
| Fabrication Guidance | Good welding / cold-bending / sawing / cutting / milling characteristics; do not heat above 150°C |
These are common reference properties for the material grade. Final dimensions, thickness, ballistic performance and certification must be confirmed against the supplied plate batch, applicable test certificate and approved customer specification.
