Description
PRODUCT OVERVIEW
The VIC MAC Bullet-Proof Modi Jacket is designed for discreet personal protection while retaining the appearance and comfort of a conventional Nehru / Modi-style jacket. Removable ballistic inserts allow the garment to be configured according to the required protection level. The jacket is intended for VIP, government and close-protection applications where low visual profile, seated comfort and freedom of movement are important.
KEY FEATURES
- Looks like a conventional Nehru / Modi-style jacket.
- Removable ballistic inserts.
- Thin, low-profile construction intended to minimise visible bulk.
- Cloth and colour options available.
- Designed to permit comfortable sitting and normal movement.
- Approximate common weight: 2.5 kg including outer jacket.
- Ballistic insert warranty commonly documented as 5 years; outer jacket warranty 2 years.
- Complete ballistic jacket supplied with integrated armour panels.
- Armour panels only, supplied separately for integration into the customer’s existing compatible jacket/carrier.
TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| Common / Indicative Specification | NIJ Level IIIA |
| Applicable Standard | NIJ 0101.06 / applicable approved revision, as confirmed for supplied configuration |
| Approx. Weight | 2.5 kg with outer jacket – common documented value |
| Ballistic Inserts | Removable |
| Outer Style | Nehru / Modi-style jacket |
| Cloth / Colour | Multiple options; made to requirement |
| Mobility | Low-profile design intended for seated and standing movement |
| Warranty – Ballistic Inserts | 5 years – common documented value |
| Warranty – Outer Jacket | 2 years – common documented value |
These are common configurations currently documented. Other configurations can be manufactured to approved customer specification.
APPLICATIONS
- VIP and executive protection
- Government officials and dignitaries
- Close-protection details
- Low-profile security assignments
GALLERY GUIDANCE
- Front worn view
- Rear worn view
- Side profile
- Ballistic insert removed
- Fabric / colour options
RELATED PRODUCTS
Bullet-Proof Umbrella | Ballistic Briefcase
FINAL CTA
VIC MAC products are manufactured to the buyer’s approved requirement. The values shown are common configurations in existing VIC MAC technical sheets.
KEY FEATURES
- Ballistic-steel protection structure.
- Common three-panel and four-panel configurations.
- Standing and kneeling firing positions available.
- Firing / observation openings with overlapping sliding ballistic shutters.
- Easy assembly / dismantling.
- Optional castor wheels for portability.
- Replaceable firing shutters.
- Camouflage or customer-specified colour.
APPLICATIONS
- Military and paramilitary sentry posts
- Police checkpoints
- Perimeter gates
- Critical-infrastructure access points like Airports, defence installations
- Temporary security posts
PRODUCT OVERVIEW

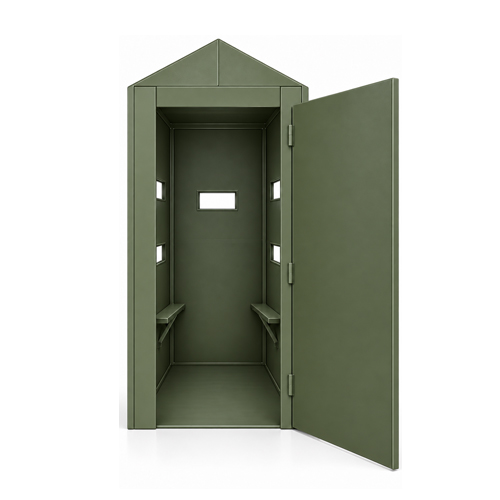

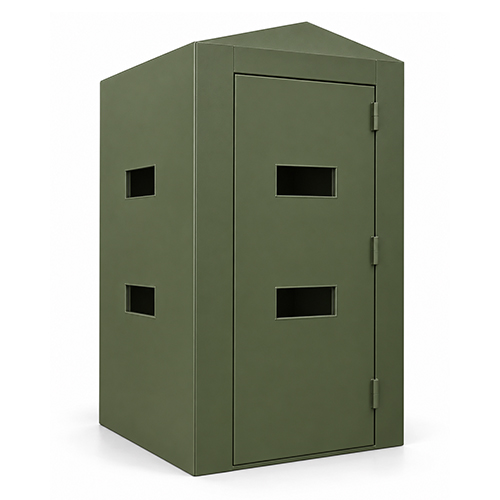

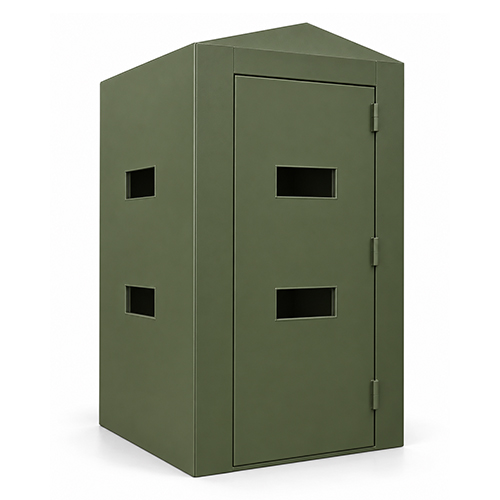

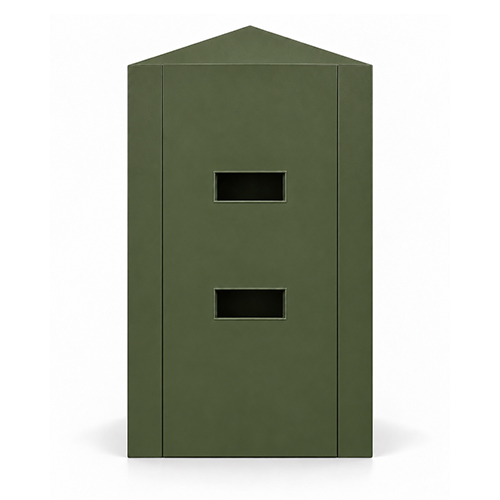

The VIC MAC Bullet-Proof Sentry Post is manufactured to customer requirement for static or semi-mobile sentry protection. Existing VIC MAC specifications document more than one established configuration, including a three-panel open sentry-post arrangement and a four-panel roofed arrangement. The website should therefore present the product as made to specification and show the common configurations rather than one universal size.
TECHNICAL SPECIFICATIONS
| Parameter | Common / Indicative Specification |
| Product Type | Made-to-spec ballistic sentry post |
| Common Ballistic Steel Thickness | 6.5 mm |
| Coverage | Common configurations provide front / left / right; enclosed options can be adapted to requirement |
| Firing Port | Common 175 x 125 mm firing slots with overlapping sliding shutter |
| Firing Heights | Approx. 1350 mm and 750 mm from bottom |
| Bullet Proof Observation Ports | Common configurations provide 300 x 300 mm ports fitted with 42 mm thick BP Glass |
| Assembly | Designed for assembly / dismantling |
| Warranty | 5 years - common documented value |
| Mobility | Optional castor wheels |
COMMON CONFIGURATIONS / OPTIONS
These are common configurations currently documented. Other configurations can be manufactured to approved customer specification. Common Configuration A - Three-Panel Sentry Post- Three ballistic plates with fitments
- Front / left / right coverage
- Standing and knee-bent firing ports
- Approx. 510 kg documented overall weight
- Optional 6 castor wheels for open configuration;
- Four panels, commonly 1900 x 1050 mm each
- Two firing-cum-observation windows per panel, commonly 200 x 200 mm
- 18-gauge non-ballistic roof
- Camouflage finish
- Easy assembly / dismantling
